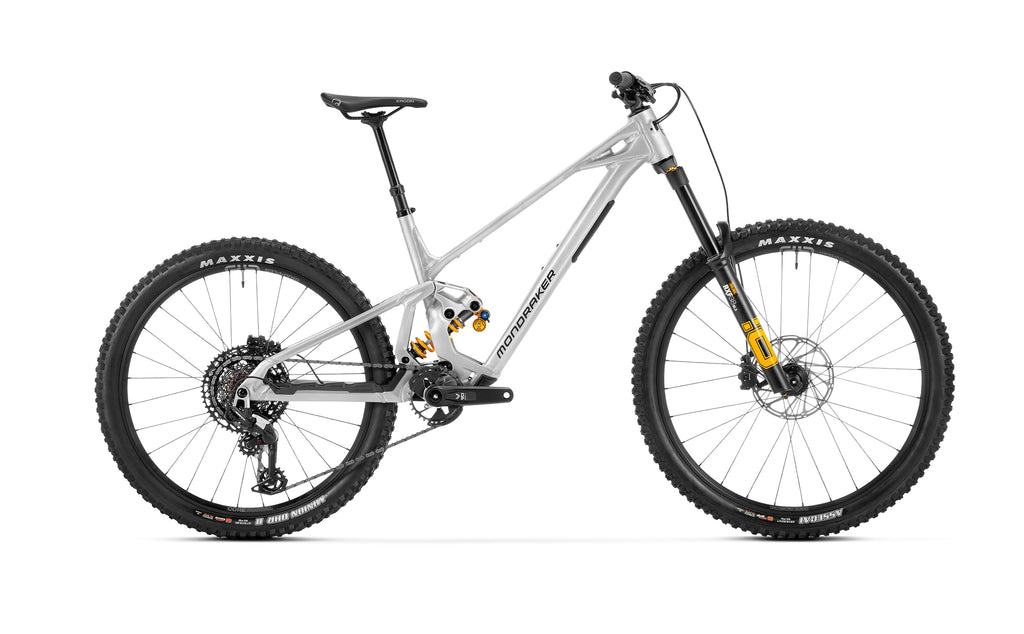

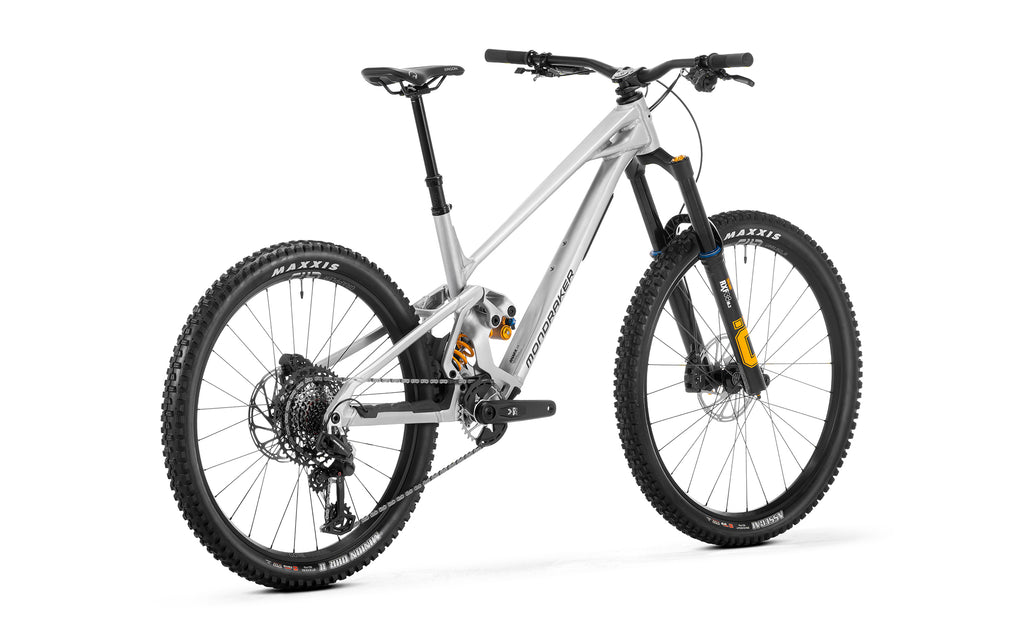

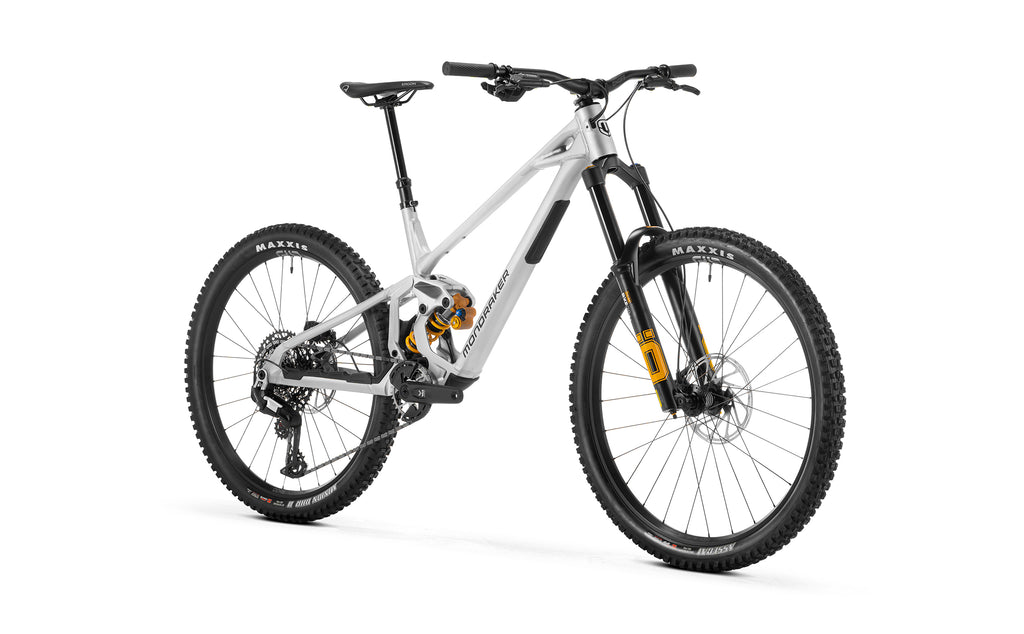

2027 Mondraker Anark XR

The Mondraker ANARK is built for riders who reckon a bike park day should end with dusty shins, sore Yeeeew! glands and about 15 laps before the last. This 170mm-travel, mullet-wheeled beast is made for slapping berms, boosting jumps, railing rough trails and getting properly sideways. With Mondraker’s updated Zero Suspension System, tough alloy frame and geometry built to keep things playful when the trail gets rowdy, the ANARK brings serious downhill capability without the race-day seriousness. Pedal it up, smash the descent, session that jump until you nail it and get back on the uplift for another crack. Forget chasing seconds — this thing is all about chasing the good times. Less racing, more railing. Get loose.

Frame: Anark 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 170mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, UDH, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05

Rear shock: Öhlins TTX 22M.2 Coil 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound. Trunnion top mount, 30x8mm bottom bushings

Fork: Öhlins RXF 38 M.3 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

Derailleur: Sram 90 Eagle, T-Type, 12s

Shift lever: Sram Trigger 70, 12s, T-Type Actuation

Headset: Onoff custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

Stem: Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

Saddle: Ergon Enduro SPS20

Rear brake: Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Front brake: Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rims: e*thirteen Grappler Core, IW30 Hookless, 6066 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

Front hub: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub

Front tyre: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead

Rear tyre: Maxxis Minion DHR II 27''5x2.5 WT, tubeless ready, 3C Maxx Terra compound, DH casing, 60x2TPI, folding bead

Crankset: Sram 90 T-Type, Boost, DUB axle, Direct mount chain ring, S size: 165mm M size: 165mm ML size: 165mm L size: 170mm XL size: 170mm, CL 55

Chainstay: Standard
