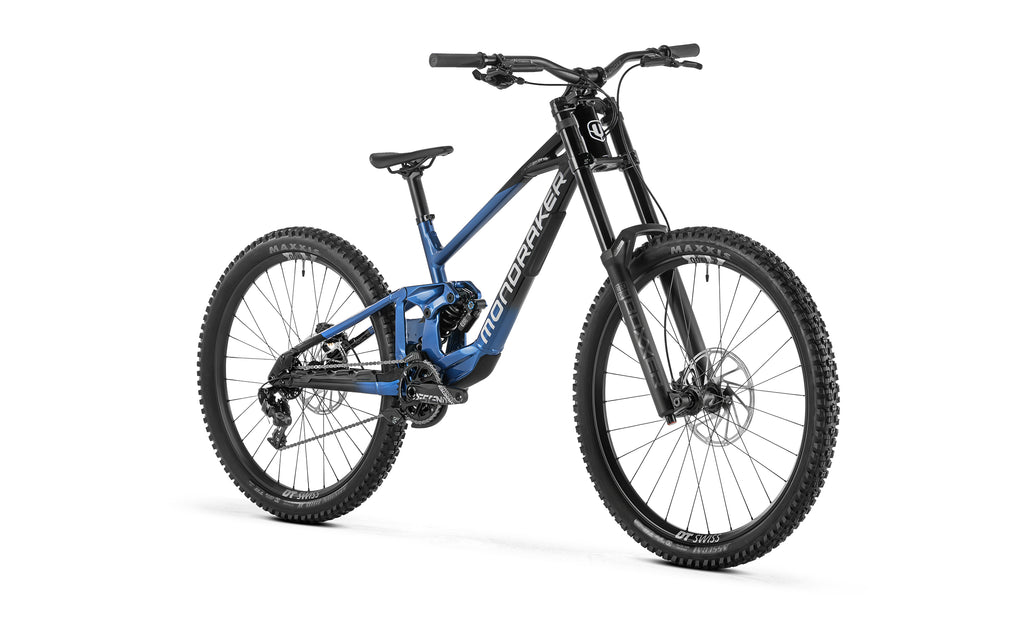

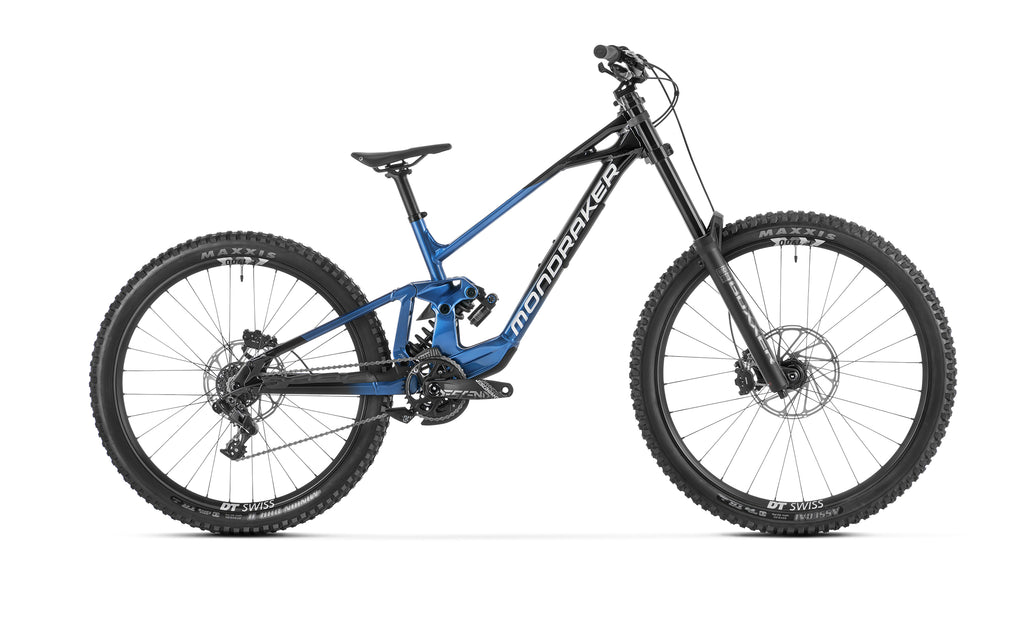

2027 Mondraker Summum R

Built for speed, competition and sending it down the hill, the Mondraker Summum is the ultimate expression of our love for Downhill racing. Mondraker’s first ever bike was a Downhill rig, so it’s no surprise the Summum has gone on to become our most successful race bike and a true benchmark in the world of DH.

Frame: Summum MX 6061 Stealth Alloy Evo, Mullet,   tubing, Updated Zero Suspension System, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, 12x157mm rear axle, UDH, 83mm BSA bottom bracket, MAX. capacity dual row bearings, HHG internal cable routing, ISCG 05.

Rear shock: RockShox Vivid Coil Select+, 225x75mm, spring preload. Trunnion top mount, 30x8mm bottom bushings

Fork: Rockshox Boxxer Select RC 29, 200mm, DebonAir+, 1-1/8” steerer tube, Boost 20x110mm axle, offset 52mm. Settings: low-speed compression, rebound, air preload

Derailleur: Sram GX DH, 7s, medium cage

Shift lever: Sram trigger GX DH 7s, X-actuation 1:1

Headset: Onoff DH ARS (Adjustable Reach System) 1-1/8", 1-1/8" steerer tube, 42x30x7x45ºx45º sealed bearings, reach kit cups( +-5 mm)

Stem: Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 4x5mm spacer

Handlebar: Onoff S6 1.5 7050 alloy, rise: 35 mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore.

Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Seatpost: Onoff S3 DH alloy, diameter 31.6mm, length 300mm

Saddle: Ergon SM10 DH Black

Rear brake: Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Front brake: Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rims: DT Swiss F 1900 Classic, 30mm internal width, welded aluminum, tubeless ready, 28 spokes front, 32 spokes rear

Spokes:DT J-bend spokes, DT competition®, black

Front hub: DT Swiss 370, Boost 20x110mm, IS 6 bolts

Rear hub: DT Swiss 370 Classic with 18T Ratchet LN System, 12x157mm, IS 6 bolts, HG freehub

Front tyre: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead

Rear tyre: Maxxis Minion DHR II 27''5x2.5 WT, tubeless ready, 3C Maxx Terra compound, DH casing, 60x2TPI, folding bead

Crankset: Sram Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 56´5

OthersGeometry kit included: +- 5mm headset cups, Lower shock mount flip chip, +5mm dropout, -5mm dropout

Reach: Standard Flip chip: Standard Chainstay Length: Standard
