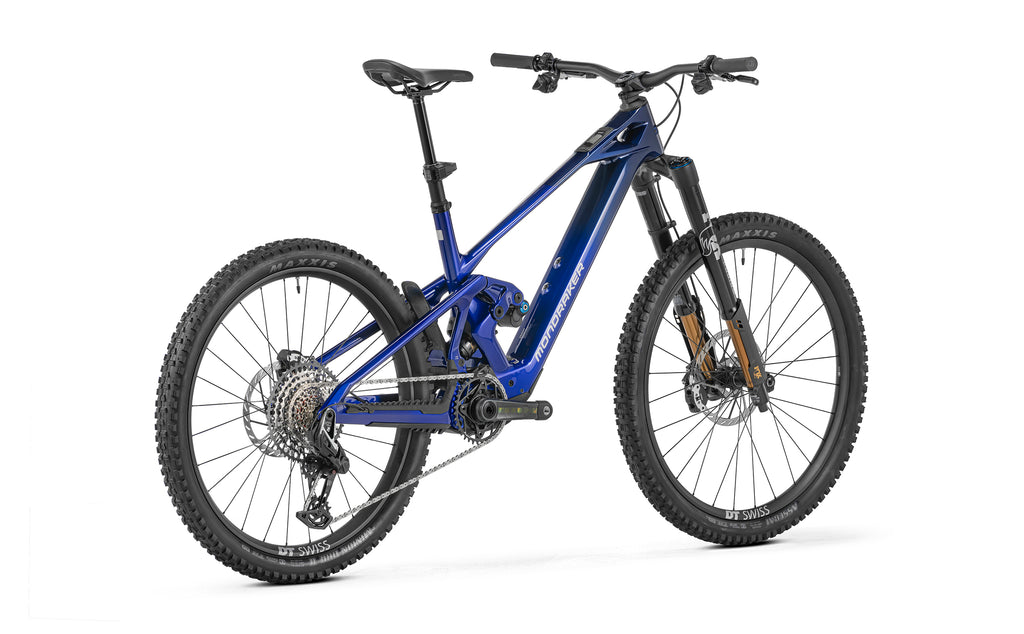

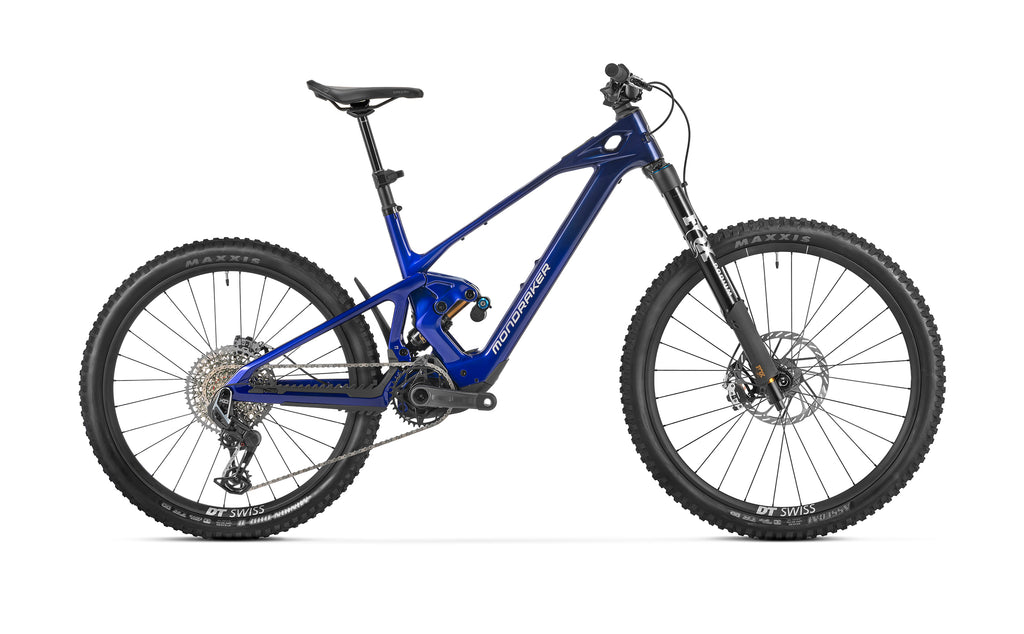

2027 Mondraker Zendit XR Enduro E-bike

When the trail gets rough, the gradient gets stupid and things start getting a little spicy, the Avinox equipped ZENDIT is right in its happy place. Point it downhill, hold on tight and let the good times roll — because if you’re not getting loose, you’re probably doing it wrong.

Frame: Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Motor: Avinox M2S

Battery: Avinox 800Wh Battery / Avinox 4A Charger

Rear shock: Fox Float X2 Factory Kashima 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.

Fork: Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm thru axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.

Derailleur: Sram X0 Eagle AXS T-Type, 12s

Shift levers: Sram Eagle AXS Pod Controller Rocker Paddle w/discrete clamp, 12s

Headset: Onoff DH ARS (Adjustable Reach System) 1-1/8", 1-1/8" steerer tube, 42x30x7x45ºx45º sealed bearings, reach kit cups( +-5 mm)

HeadsetAcros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock.

Stem: Onoff S9 30mm 0º, Full CNC, 31.8mm barbore.

Handlebar: Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Seatpost: RockShox Reverb AXS, diameter 31.6mm, w/AXS Pod Controller Rocker Paddle. S size: 398.2x125mm, M size: 448.2x150mm,ML size: 498.2x175mm, L size: 548.2x200mm, XL size:548.2x200mm.

Saddle: Ergon SM10 E-Mountain Black.

Front brake: Sram Maven Ultimate, 18 millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Rear brake: Sram Maven Ultimate, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Rims: DT Swiss Hybrid HXC 1500 Spline, Carbon, 30mm internal width, tubeless ready, 28 spokes.

Spokes: DT Complite Hybrid T-Head

Front hub: DT Swiss 240, 20x110mm Boost, Disc IS (6-bolt).

Rear hub: DT Swiss 240, 12x148mm Boost, Disc IS (6-bolt), Sram XD Steel freehub body, 72T Ratchet DEG System.

Front tyre: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead

Rear tyre: Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead

Crankset: e*thirteen Helix Race Carbon e*spec. All sizes: 155mm

Others: Sram AXS Extension Cord

Chainstay Length: Standard
