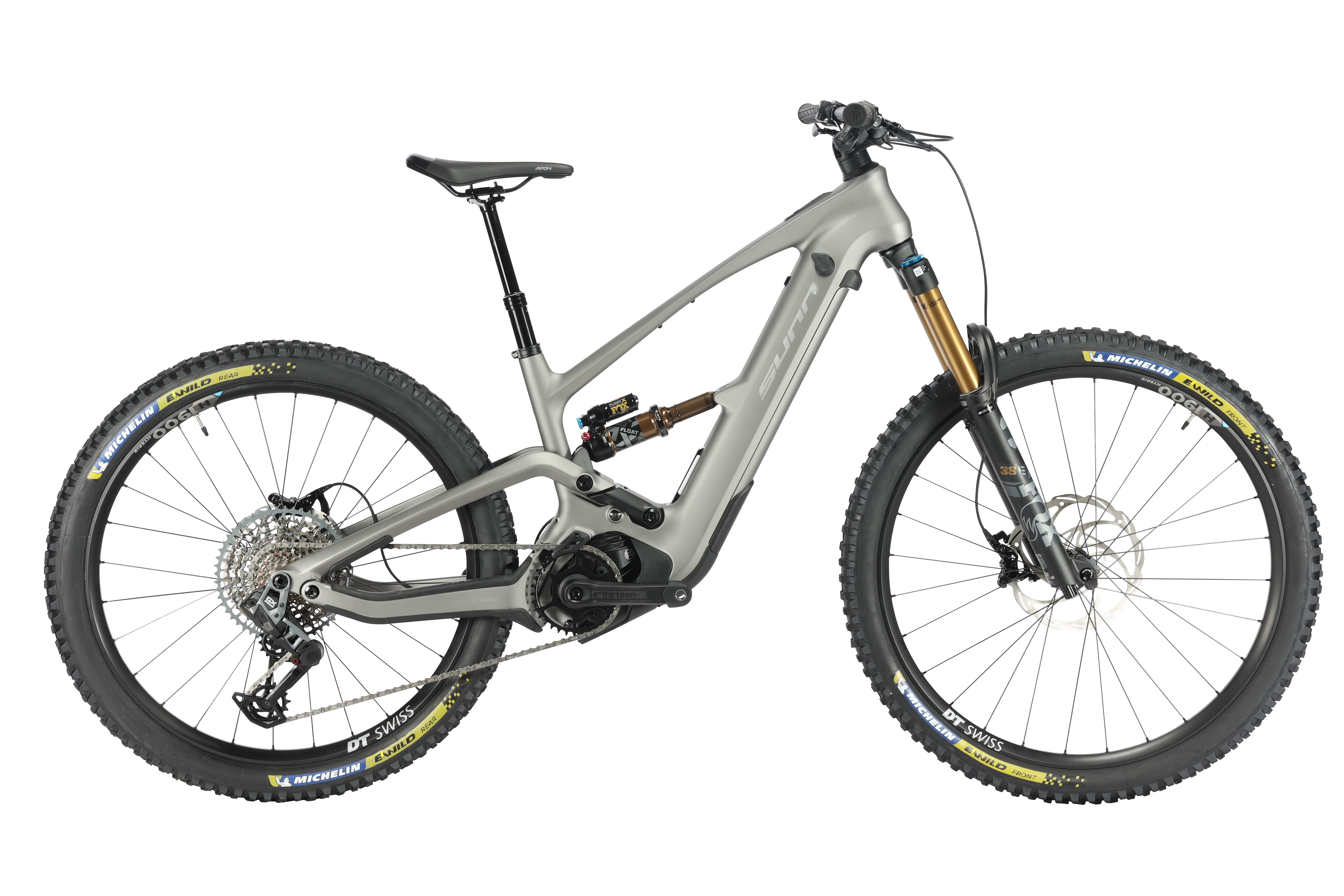

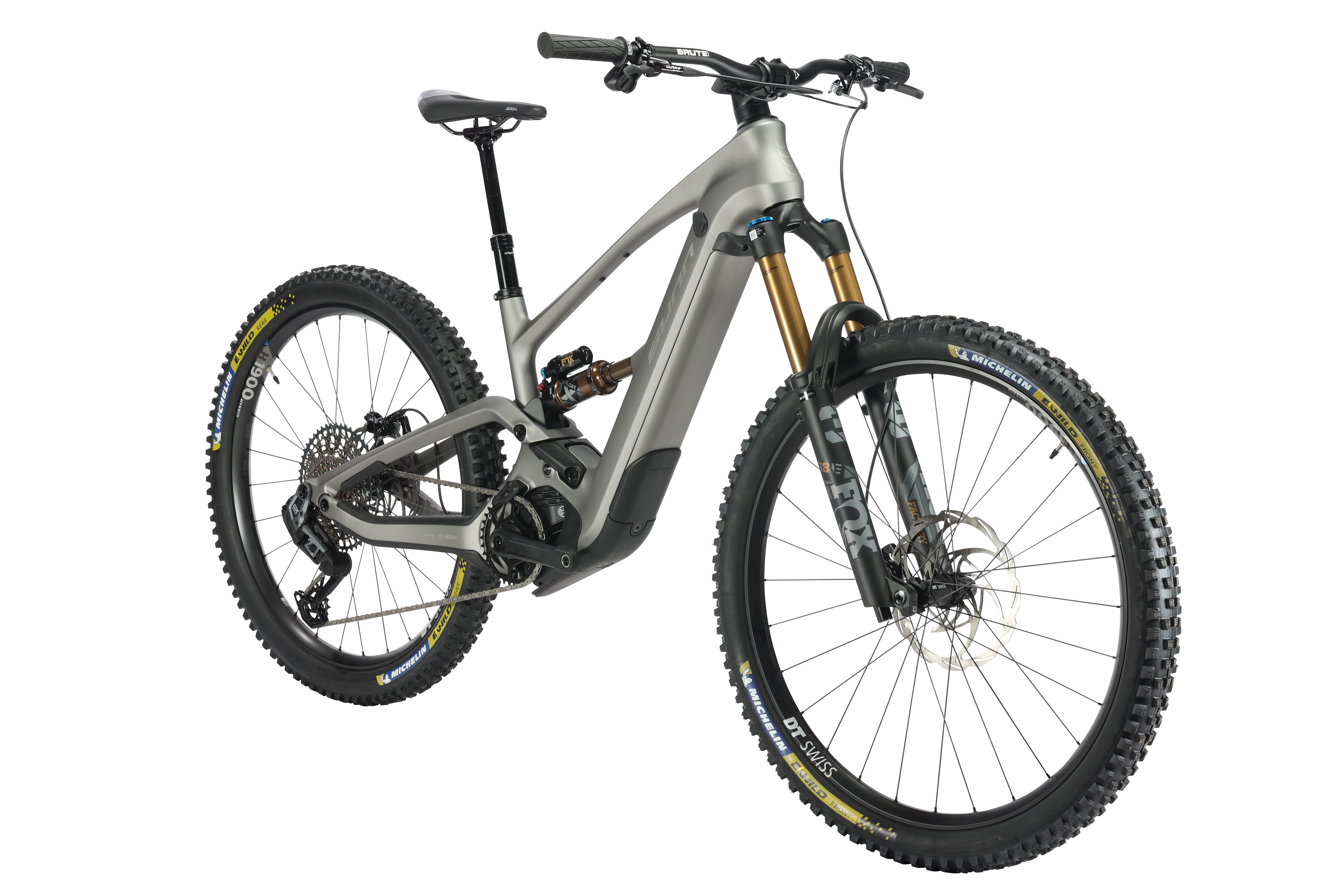

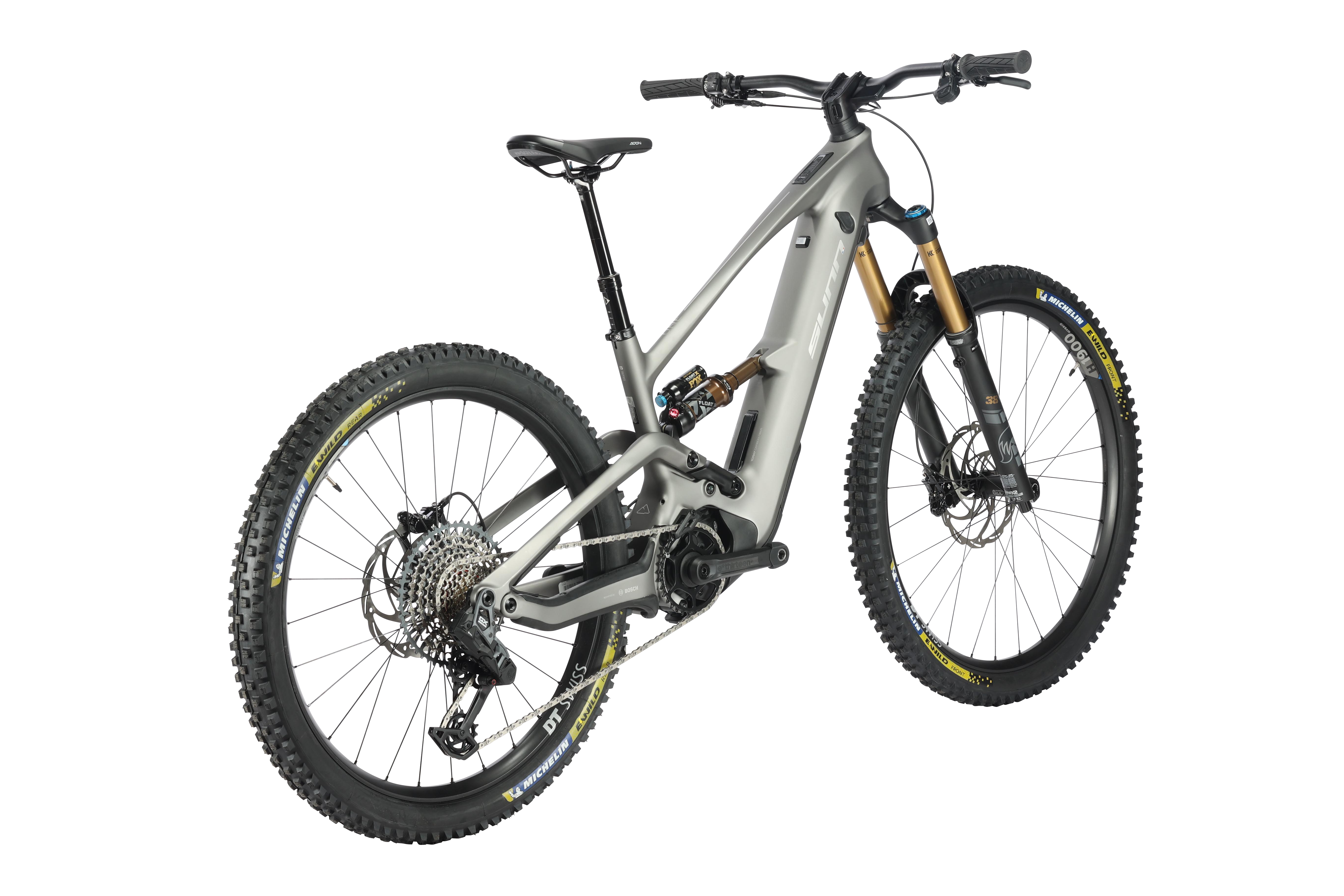

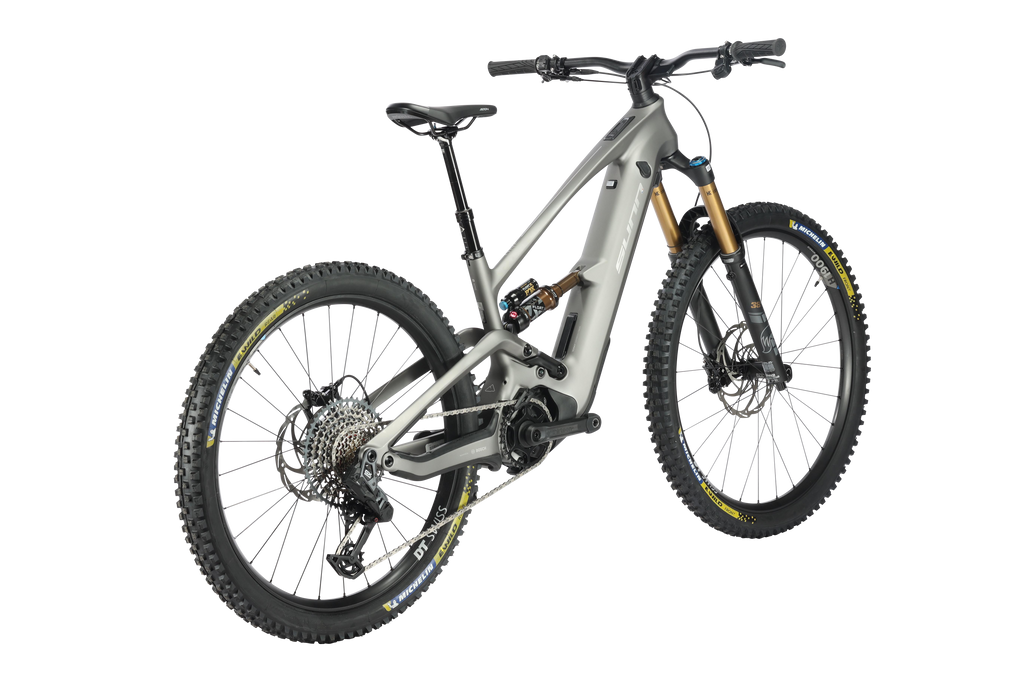

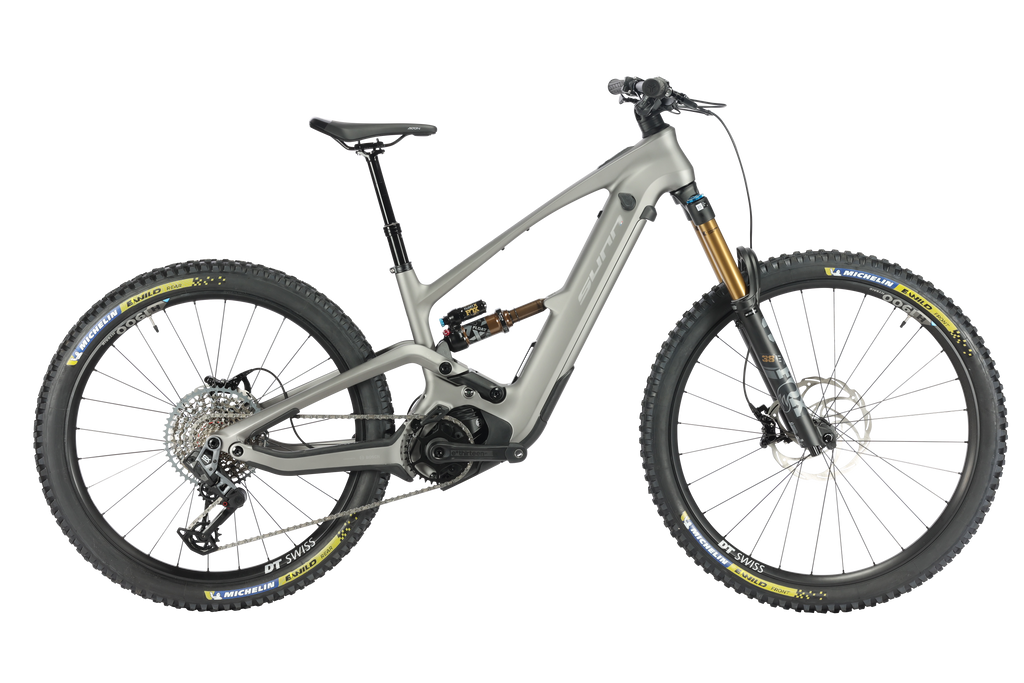

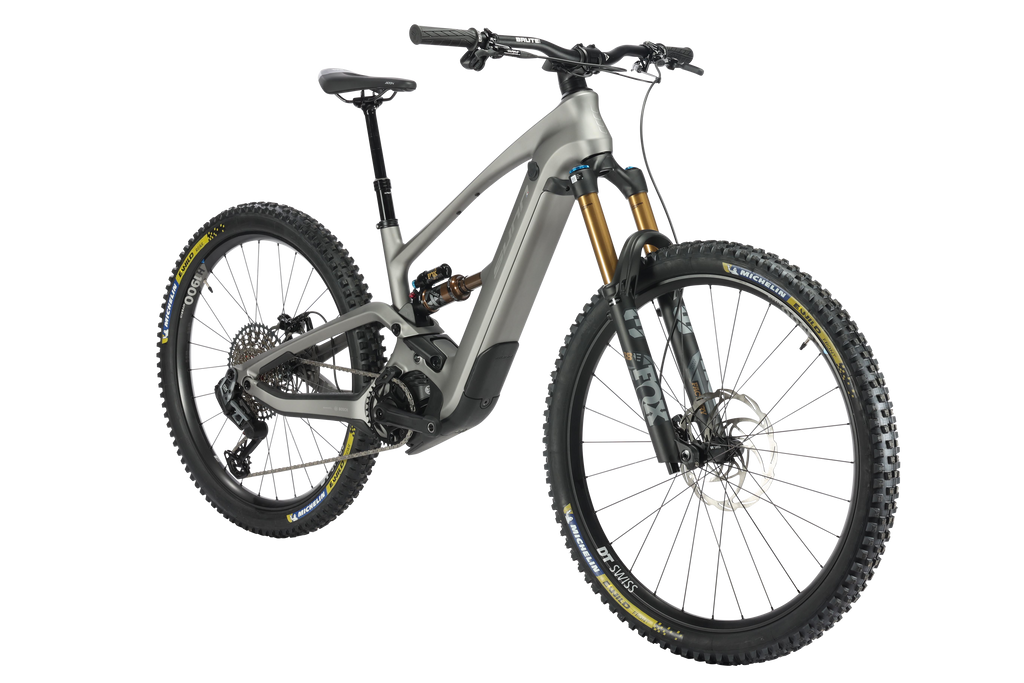

SUNN MY25 One Finest
small
$13,000.00 AUD
Skip to product information
TAX INCLUDED. SHIPPING CALCULATED AT CHECKOUT.
0 in stock 🔥
SKU: 79342655
Tax included. Shipping calculated at checkout.
Australia-wide shipping
PAYMENT & SECURITY
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
After three years of development and countless prototypes exploring different geometries, kinematics, motor systems, and carbon fiber compositions — the ONE has finally arrived. Crafted by one of the world’s foremost carbon fiber specialists, its frame construction rivals the precision and artistry of haute couture.
Made from the same high-performance Toray fibers used in the aerospace industry, every layer is meticulously oriented to deliver maximum strength and reliability while achieving the ideal balance of weight, stiffness, and tolerance. The result: a chassis that embodies pure engineering excellence.
⚙️ Specifications
🧱 Frame
-
Frame: Full Carbon Toray E-Enduro, Integrated Boost, 160 mm
🪂 Suspension
-
Fork: FOX 38 Float Factory Kashima, 170 mm, Boost, Tapered
-
Travel: 170 / 160 mm (S: 160 / 160 mm)
-
Shock Absorber: FOX Float X2 Factory Kashima 230 × 65 mm
⚡ Motorization
-
Engine: New Bosch Performance Line CX Smart System — Torque: 85 Nm / Max Power: 600 W / 100 Nm compatible via the eBike Flow app
-
Battery: Bosch PowerTube 800
-
Display: Bosch Purion 400
🚴 Transmission
-
Rear Derailleur: SRAM GX Eagle Lunar 12-Speed AR
-
Crankset: E-Thirteen 160 mm / SRAM X-Sync 34T
-
Cassette: SRAM Eagle XG1275 12-Speed, 10–52 XD
🛑 Brakes
-
Brakes: Formula Cura 4 — 220 / 203 mm rotors
🛞 Wheels
-
Wheel Size: 27.5" / 29"
-
Rims: DT Swiss H1900 Spline Tubeless
-
Hubs: Boost, Thru Axle
-
Tires: Michelin E-Wild Racing Line 29 × 2.4 / Michelin E-Wild Racing Line 27.5 × 2.6 TLR
🧩 Components
-
Handlebar: Brute One Alloy 780 mm × 31.8 — Rise 25
-
Stem: 3D Forged Alloy, Integrated 31.8 × 45 mm
-
Seatpost: Brute Dropper — 130 mm (S) / 150 mm (M) / 170 mm (L–XL)
-
Saddle: Fizik Terra Aidon X5
⚖️ Weight
-
Total Weight: 24.5 kg
📄 Documentation
-
SUNN E-MTB Instructions
-
Bosch CX Engine Manual
-
Bosch PowerTube 800 Battery
-
Bosch Purion 400
-
YGSUV8 Certificate
📐 Geometry
| Specification | S | M | L |
|---|---|---|---|
| Seat Tube Height (ST) | 360 | 410 | 460 |
| Top Tube Length (TT) | 574 | 601 | 629 |
| Wheelbase (WB) | 1221 | 1250 | 1280 |
| Head Angle (HA) | 64° | 64° | 64° |
| Seat Tube Angle (SA) | 77.5° | 77.5° | 77.5° |
| Chainstay Length (RC) | 445 | 445 | 445 |
| Bottom Bracket Height (BB) | -28 | -28 | -28 |
| Head Tube Length (HT) | 100 | 110 | 120 |
| Reach (mm) | 435 | 460 | 485 |
| Stack (mm) | 628 | 637 | 646 |
📏 Size Guide
Rider Height Recommended Size Fit
158 cm - 170cm Size S
168 cm - 180cm Size M
178 cm - 188cm Size L
